محصولات شرکت تمام تدبیر
THCM4
temperature and humidity controller and data logger
سيستم کنترل، مانیتورینگ ، رکورد و آلارم دما و رطوبت با قابليت برنامه ريزي گرافهای کنترلی مشخصات فني:- دو کانال ورودي سنسورهاي دماي تر و خشک (Wet/Dry Bulb)
- هشت رله خروجي قابل برنامه ريزي
- پورت ارتباطی سریال RS485
- نرخ نمونه برداری از 1 ثانیه تا 10 ساعت
- 1000 خط برنامه و رکورد برای هر کانال
- رله و LED قابل برنامه ریزی آلارم
- نمايشگر SSD براي نمايش اطلاعات
- محافظت از اطلاعات و تنظیمات در صورت قطع برق
- امکان برنامه ريزي با منحني هاي دما و رطوبت متغيير با زمان
- امکان انجام کاليبراسيون و تنظیمات به صورت نرم افزاري
- ثبت داده ها و رسم گراف توسط برنامه مانيتورينگ کامپیوتری
- امکان دسترسی وکنترل از راه دورتوسط شبکه اترنت و اینترنت
- اندازه گيري دقيق و ثبت دما و رطوبت در سرد خانه ، گرم خانه، خشک کن و اتاق تخمیر
- مناسب برای صنایعی نظیر توتون، ماکارونی، نساجی، چوب، خشکبار، چای، آجر، قارچ
- اندازه گيري و ثبت دما و رطوبت بادقت بالا و ثبات و پایداری طولانی مدت
- کنترل دما و رطوبت با امکان تعريف گرافهای کنترلي متغير با زمان
VATI-440
Analogue Signal Ampilifier and Transimitter
تقویت کننده سيگنالDC دو کاناله: مشخصات:- قابليت تقويت یا تبدیل سيگنال هاي 0-5/10/15/30/50/100/10000 mVDC
- خروجي 0-10 VDC یا 4-20 mA
- امکان کاليبراسيون سخت افزاري
- تبدیل جريان يا ولتاژ DC ضعیف به سیگنال استاندارد برای ورود به PLC یا کنترلر
- تقويت سيگنال دو سر Strain gauge ،پل وتستون ، ترموکوپل، مقاومت شنت و ...
M32f103A
Analogue to modbus RTU convertor
- پروتوکل ارتباطی: پورت Modbus برای تبادل اطلاعات با PLC , CPU Master , PC
- 8 ورودی آنالوگ 0-20/4-20 mA 0-5/0-10/1-5/2-10 VDC
- دمای کاری 40- تا 85°C
- ایزولاسیون نوری کانالهای ورودی آنالوگ
- ADC 16 بیتی
- Zero Drift : ±5 µV/ºC
- Span Drift : ±20 ppm/ºC
- نرخ نمونه برداری 1-200 sample/per second
- کالیبراسیون نرم افزاری
- نصب سریع و آسان و مطمئن:
- دارای پورت ارتباطی USB
ACT-320
CT/PT to Analogue Output Transmitter
تقویت کننده و ترانسمیتر دو کاناله ترانس جريان CT :- تقویت کننده و ترانسمیتر سیگنال ترانس جریان 1 یا 5 آمپری
- تقویت کننده و ترانسمیتر سیگنال AC برای رنج های mV 50, 100, 250, 500
- خروجي 0-10 VDC یا 4-20 mA یا Modbus
- امکان کاليبراسيون سخت افزاری
- تبدیل خروجی ترانس جريان به سیگنال استاندارد برای ورود به PLC یا کنترلر
- تقویت کننده و ترانسمیتر سیگنالهای AC
M.I.R 6030A
contoller and data logger
مشخصات فنی :- سه کانال ورودي تفاضلي (ديفرانسيلی)
- قابل اتصال به انواع ترانسميترهای صنعتی
- نرخ نمونه برداری از 1 ثانیه تا 10 ساعت
- 12000 رکورد برای هر کانال ورودی
- فرمان رله و چراغ LED آلارم
- اتصال به چند نمايشگر LCD
- شش خروجي دیجیتال ايزوله
- ارتباط با شبکه ModBus
- استفاده به عنوان دیتا لاگر مستقل و منطبق با ملزومات GMP/GSP
- ثبت فرايندهاي صنعتي ، تحقیقاتی به منظور گرد آوری داده و حفظ سوابق فرایند
- تحلیل سیستم بمنظور بهینه سازی ، یافتن نواقص یا پیش بینی خرابی تجهیزات
- اعلام آلارم یا فرمان توقف، در صورت بروز شرایط بحرانی یا نقص فنی در ماشین آلات
- جلو گیری از وقوع خسارت به ماشین آلات و محصول تولیدی با هشداربموقع اشکالات
- کنترل اتوماتیک تاسیسات یا دستگاهها، با امکان تعريف چند سطح کنترلي متفاوت
- امکان مدیریت متمرکز بر مجموعه ای که از واحدهای مجزا و دور از هم تشکیل شده
محصولات شرکت SENSE
محصولات شرکت Sontay
SC-FS-ROUTER-BAC Fieldserver BACnet Router
روتر BacNet
The BACnet Internet of Things Gateway offers all you would expect from a high end Explorer product and more. It not only automatically discovers BACnet IP and BACnet MS/TP networks, but with Monitor View and Historian features, device data points can be precisely tracked and logged for analysis. Additionally it also acts as a Wifi Access Point for remote access from any mobile device without user restrictions. Cellular data (SIM card required) is an option.
ST-W General Purpose Thermostat – Wall Unit
ترموستات دیواري
Sontay revised range of thermostats are well suited for a number of applications of temperature control or safety cut-out in pipe work systems, calorifiers, duct work systems, green houses and many other installations. They all have the set-point adjustment under the cover to prevent unauthorised tampering. They are available in two types; 1.) Control thermostats (auto reset) - with an adjustable set point, adjustable differential and auto rest, which provides a switched output to a heater or controller. 2.) Safety thermostats (manual reset) - with an adjustable set-point, fixed differential and manual reset, which provides high limit cut-out on boilers etc.
PM-CS-F Current Switches (fixed setpoint types)
سوییچ جریان غیرقابل تنظیم
Sontay’s range of current switches offer adjustable or fixed setpoint’s and provides accurate, reliable and maintenance-free operation. Output switching options include 30Vac/dc @ 1A or 240Vac @ 1A, with current ratings of up to 150A. Both versions have a unique self-gripping feature which allows the switch to literally clip on to a cable without the need for a base mounting plate.
- Process equipment status
- Monitoring critical motors (compressors etc.)
- Verifying lighting circuits
- Detection of motor failure
- Detection of fan belt breakage

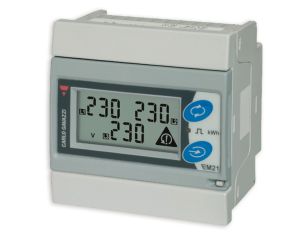

PM-EM210 Energy Analyser (DIN-rail or panel mounted)
آنالایزر انرژي
The PM-EM210 is a compact energy meter that has a removable front LCD display that allows it to be either DIN-rail or panel mounted. The energy meter is designed for active and reactive energy metering. All operations, including programming and viewing up to seven display pages are performed using the two push buttons on the detachable display. It is possible to block the access to programming by means of a trimmer position on the rear of the display. Standard meters are non-MID. For billing use, add annex -B+D option. Extra system information is required please contact Sontay Support.
- Pulsed or ModBus output options
- Self powered
- 5A CT secondary current
- Compact size
- Detachable display
- Multi-use housing for both DIN-rail and panel mounting applications
محصولات شرکت HK instruments
CDT2000
Multifunctional CO2 transmitters for building automation systems
CDT series air quality transmitters are engineered for building automation systems in the HVAC/R industry. The CDT series measures carbon dioxide (CO2) utilizing the industry standard NDIR measurement principle, and temperature (T). Optional relative humidity (rH) measurement is also available in the same device. CDT series devices are available with large touchscreen display making configuration of the device quick and easy.
The CDT2000 series transmitters calibrate themselves automatically using ABC logicTM. The ABC logicTM requires that the space in which the transmitter is used needs to to be unoccupied for four hours per day so that the indoor CO2 concentration drops to the outside level. CDT2000-DC is a dual channel model with a measuring channel and a reference channel that makes a continuous comparison and the necessary adjustment accordingly. CDT2000-DC is also suitable for buildings that are continuously occupied.
CDT series devices include:
• Separate field configurable output for each measurement parameter (CO2, rH, T)
• Proportional output options including: voltage (0–10 V, 2–10 V) and current (4–20 mA)
• Offset feature enabling field calibration for each measurement parameter (CO2, rH, T)
• Time extension button that enables boosting ventilation manually using the touchscreen display (models with relay)
CDT2000 series device options offer:
• 2” x 3” touchscreen display
• Field configurable relay for any of the three parameters
• Modbus configuration
RHT-MOD DUCT
Humidity transmitters with temperature output for duct that use Modbus serial communication protocol
RHT-MOD Duct is a relative humidity transmitter with temperature output installed in air ventilation duct. In addition to these measured values, RHT-MOD Duct calculates various parameters such as dew point, mixing ratio, enthalpy and absolute humidity. Illuminated display ensures easy readability also from a distance. The RHT-MOD has a screwless lid and an easily adjustable mounting flange that make the installation of the device easy.
RHT-MOD Duct series devices include:
• Separate Modbus output for all measured and calculated parameters (relative humidity, temperature, dew point, mixing ratio, enthalpy and absolute humidity).
• Offset feature enabling field calibration for measurement parameters rH and T.
• Mounting flange
• Clear backlit display
DPI
Electronic differential pressure switch and transmitter
The DPI series electronic pressure measuring devices are engineered for building automation in HVAC/R industry. The most technologically advanced and versatile electronic differential pressure switches on the market, combining up to two relay outputs and 0–10 V output options.
The DPI includes the following field selectable features: • Configurable switching point: Open on rise or fall in pressure • Hysteresis of setpoint • Measurement units (Pa, kPa, mmWC, inWC, mbar) • Measurement range (4 ranges per model) • Output signal (0−10 V, NO/NC) • Span and zero point calibration
CDT-MOD-2000
Multifunctional CO2 transmitters for building automation systems that use Modbus serial communication protocol
CDT series air quality transmitters are engineered for building automation systems in the HVAC/R industry. The CDT series measures carbon dioxide (CO2) utilizing the industry standard NDIR measurement principle, and temperature (T). Optional relative humidity (rH) measurement is also available in the same device. CDT series devices are available with large touchscreen display making configuration of the device quick and easy. Configuration is also possible via Modbus network.
The CDT-MOD-2000 series transmitters calibrate themselves automatically using ABC logicTM. The ABC logicTM requires that the space in which the transmitter is used needs to to be unoccupied for four hours per day so that the indoor CO2 concentration drops to the outside level. CDT-MOD-2000-DC is a dual channel model with a measuring channel and a reference channel that makes a continuous comparison and the necessary adjustment accordingly. CDT-MOD-2000-DC is also suitable for buildings that are continuously occupied.
CDT-MOD-2000 series devices include:
• Separate field configurable Modbus output for each measurement parameter (CO2, rH, T)
• Offset feature enabling field calibration for each measurement parameter (CO2, rH, T)
• One analog output for selected measurement: voltage (0/2–10 V) or current (4–20 mA)
• 2″ x 3″ touchscreen display
• Time extension button that enables boosting ventilation manually using the touchscreen display
• Optional relay output
